D-Link 52-Port Metro Gigabit Ethernet Managed Desktop Switch - (DGS-1210-52/ME)
Efficient and resilient Gigabit performance for Metro Ethernet applications.

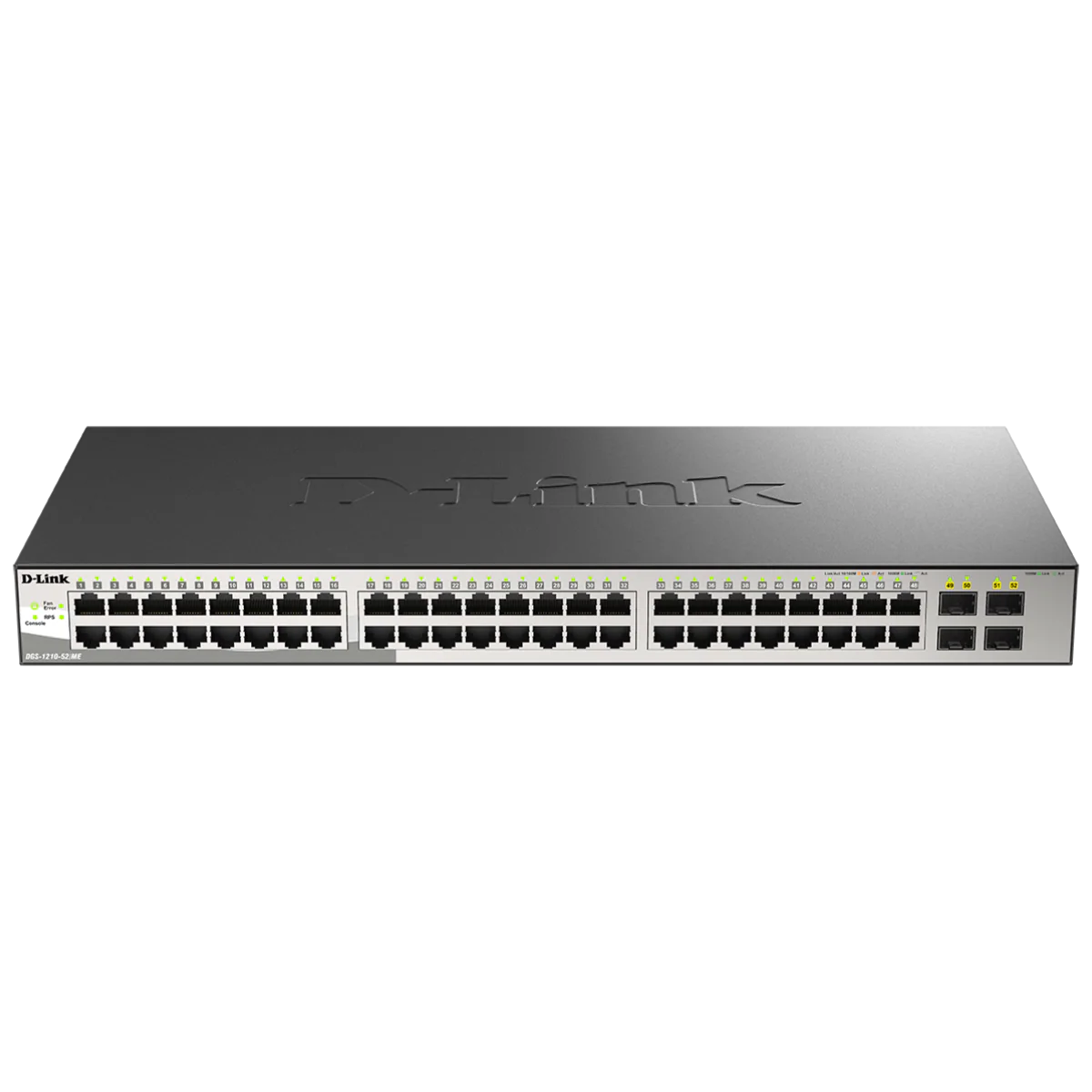

- 48 x 10/100/1000BASE-T ports
- 4 x SFP ports
- Comprehensive Layer-2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6kV surge protection, sub-50ms recovery ERPS, and Dying Gasp provide optimal reliability
Efficient and Resilient
For mission-critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to eight queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ helps protect the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Specifications
| 1000Base-T Interface | 48 |
|---|---|
| 1000M SFP Interface | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| Switching Capacity | 104 Gbps |
| Max. Packet Forwarding Rate | 77.4 Mpps |
| Dimension | 440mm x 210 mm x 44mm |
| Weight | 3.31kg |
| Operation Temperature | -5-50°C |
| Storage Temperature | -20 - 70 ˚C |
| Operation Humidity | 0%-95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 1500 meters |
| Maximum Power Consumption | 38.85 Watts |
| Packet Buffer Size | 3.0MB |
| FAN | Yes |
| Power Input | 100-240 VAC |
| Maximum PoE Budget | No |
| Physical Stacking | No |
For more information on our business-class solution, reseller pricing, distribution availability, and partner program please reach out to our commercial sales team at 888-354-6574 or solutions@us.dlink.com
Efficient and resilient Gigabit performance for Metro Ethernet applications.
- 48 x 10/100/1000BASE-T ports
- 4 x SFP ports
- Comprehensive Layer-2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6kV surge protection, sub-50ms recovery ERPS, and Dying Gasp provide optimal reliability
Efficient and Resilient
For mission-critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to eight queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ helps protect the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Specifications
| 1000Base-T Interface | 48 |
|---|---|
| 1000M SFP Interface | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| Switching Capacity | 104 Gbps |
| Max. Packet Forwarding Rate | 77.4 Mpps |
| Dimension | 440mm x 210 mm x 44mm |
| Weight | 3.31kg |
| Operation Temperature | -5-50°C |
| Storage Temperature | -20 - 70 ˚C |
| Operation Humidity | 0%-95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 1500 meters |
| Maximum Power Consumption | 38.85 Watts |
| Packet Buffer Size | 3.0MB |
| FAN | Yes |
| Power Input | 100-240 VAC |
| Maximum PoE Budget | No |
| Physical Stacking | No |
For more information on our business-class solution, reseller pricing, distribution availability, and partner program please reach out to our commercial sales team at 888-354-6574 or solutions@us.dlink.com
Original: $587.99
-65%$587.99
$205.80Description
Efficient and resilient Gigabit performance for Metro Ethernet applications.
- 48 x 10/100/1000BASE-T ports
- 4 x SFP ports
- Comprehensive Layer-2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
- Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
- Embedded 6kV surge protection, sub-50ms recovery ERPS, and Dying Gasp provide optimal reliability
Efficient and Resilient
For mission-critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to eight queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ helps protect the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Specifications
| 1000Base-T Interface | 48 |
|---|---|
| 1000M SFP Interface | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| Switching Capacity | 104 Gbps |
| Max. Packet Forwarding Rate | 77.4 Mpps |
| Dimension | 440mm x 210 mm x 44mm |
| Weight | 3.31kg |
| Operation Temperature | -5-50°C |
| Storage Temperature | -20 - 70 ˚C |
| Operation Humidity | 0%-95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 1500 meters |
| Maximum Power Consumption | 38.85 Watts |
| Packet Buffer Size | 3.0MB |
| FAN | Yes |
| Power Input | 100-240 VAC |
| Maximum PoE Budget | No |
| Physical Stacking | No |
For more information on our business-class solution, reseller pricing, distribution availability, and partner program please reach out to our commercial sales team at 888-354-6574 or solutions@us.dlink.com
