A Powerful Business-Grade Wi-Fi Solution

Centralized cloud-based management, with intuitive web and app-based interface
Slice through congestion with better handling of multiple connections thanks to IEEE 802.11ac Wave 2 wireless
Superior throughput with tri-band transfer speeds of up to 400 Mbps in the 2.4 GHz band and two 867 Mbps 5 GHz bands
Supports Power over Ethernet (PoE 802.3at) for simpler installation with less cable clutter
With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup
Equipped with an integrated DHCP Server
Supports RADIUS client and Cipher negotiation
Supports WPA3™ - the latest WiFi security for more protection
Supports Link Aggregation for an overall more stable network
Power Supply 12 V / 2.5 A / IEEE 802.3at PoE (Note: this product does not ship with a power supply. Optional power adapter is sold separately)

Harness the Power of Cloud Networking

This device is part of the Nuclias Cloud Solution. Businesses of any size and level of IT resources can reap all the benefits of Cloud Networking to boost productivity and enhance competitiveness.

Zero Touch Deployment
Hassle-Free Management
Unlimited Scalability

Tri-Band Wi-Fi: A Choice As Easy As One-Two-Three

If collaboration or productivity has slowed to a crawl, your business needs the DBA-2720P: the ultimate solution for busy congested offices and public spaces. Tri-band Wi-Fi offers a formidable 2200 Mbps throughput across the 2.4 GHz band and two 5 GHz bands.

2.4 GHz Rate 400 Mbps

5 GHz Rate 867 Mbps

Paired with two Gigabit LAN ports that support Link Aggregation, you have got exceptionally fast back-haul to the network. It gets business back operating at full steam.

Features To Supercharge Your Wi-Fi

The DBA-Series comes packed with features that boost throughput, handle more users more efficiently, and creates an overall simply better Wi-Fi experience.

Band Steering

The 5 GHz band is the fast lane of your Wi-Fi. Band Steering automatically drives capable devices such as smart phones or tablets onto the 5 GHz band, delivering them a better experience, especially in situations such as HD video streaming or VoIP.

MU-MIMO

This feature is the ultimate weapon in handling congestion by being able to support more simultaneous streams of data. Your Access Points can serve more people at the same time. That’s less waiting time all round.

Load Balancing

Redress the balance with Load Balancing. Connections are shared out fairly to surrounding Access Points, avoiding any single point in your Wi-Fi becoming overwhelmed. The result? A steady, consistent connection for every user.

Beamforming

Beamforming technology continuously optimizes the wireless signal, focusing and it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality.

Your Guests Online in No Time with a Captive Portal

With your tri-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.

And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.

Zero Touch Deployment for Simple Installation

The DBA-2720P Nuclias Cloud-Managed Wave 2 Access Point is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias Zero Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through the Nuclias Connect cloud software.

Complete Control over your Network’s Access

Complete control comes as standard with the DBA-2720P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network better protected and hitch free.

The latest 128-bit Personal and 192-bit Enterprise Wireless Encryption The industry standard in data security
RADIUS Eliminate shared passwords with unique credentials for each employee
Customizable Captive Portal Separate guest and employee access

MAC Filtering – Limit what devices can connect
Rogue AP Detection – Guard against unauthorized Access Point installation
Wireless LAN Segmentation – Better bandwidth utilization
Wireless Isolation – Limit what users access on the local network
Wireless Broadcast Scheduling – Automate when your network is available
SSID Broadcast Disabling – Hide your wireless for an extra layer of security

Effortless Management, Anytime, Anywhere

You’re busy. Nuclias makes deployment, configuration, management and keeping up with your network status as simple and quick as it should be. All from the convenience of your tablet, wherever and whenever.

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DBA-2720P’s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

For more information on our business-class solution, reseller pricing, distribution availability, and partner program please reach out to our commercial sales team at 888-354-6574 or solutions@us.dlink.com

Indoor Access Points

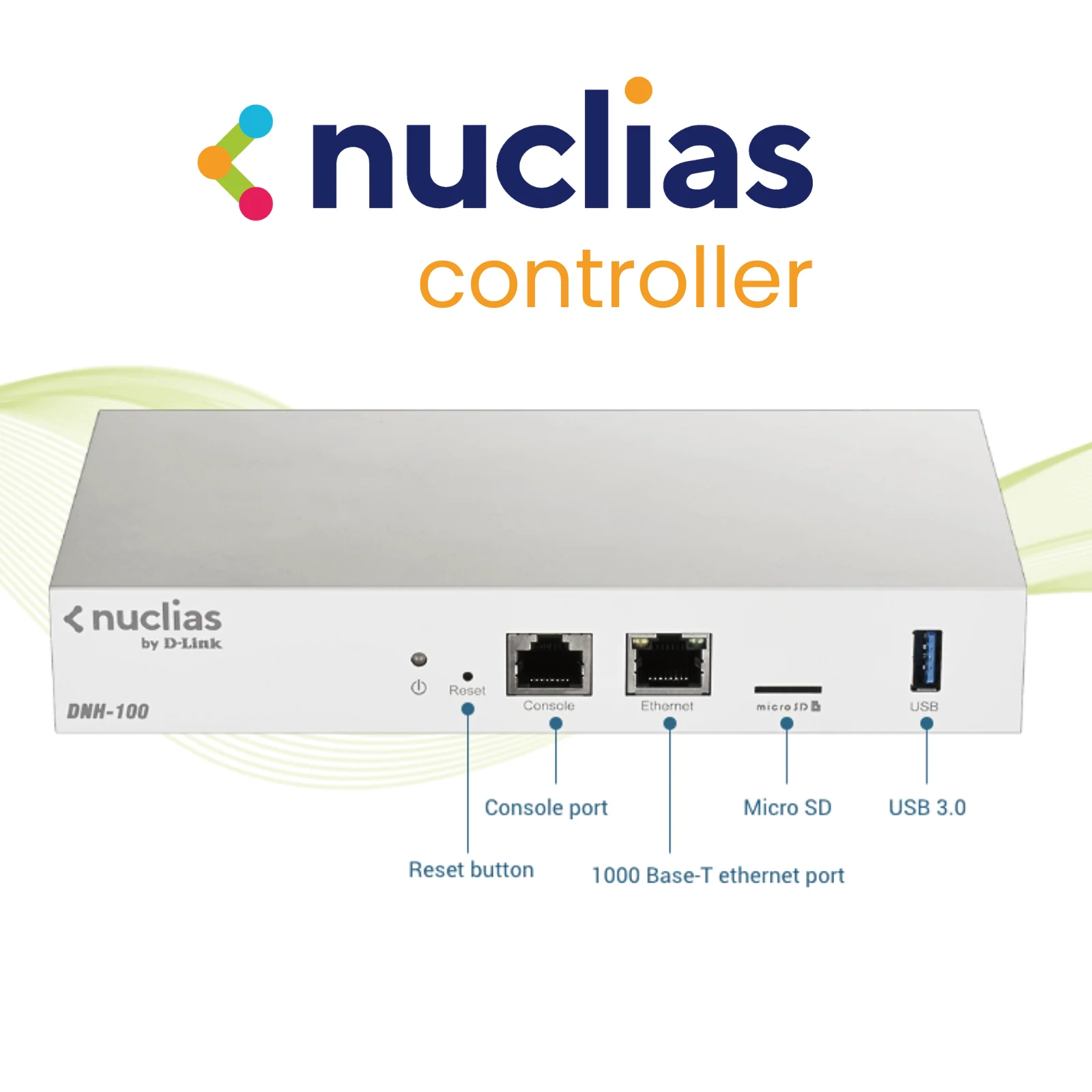

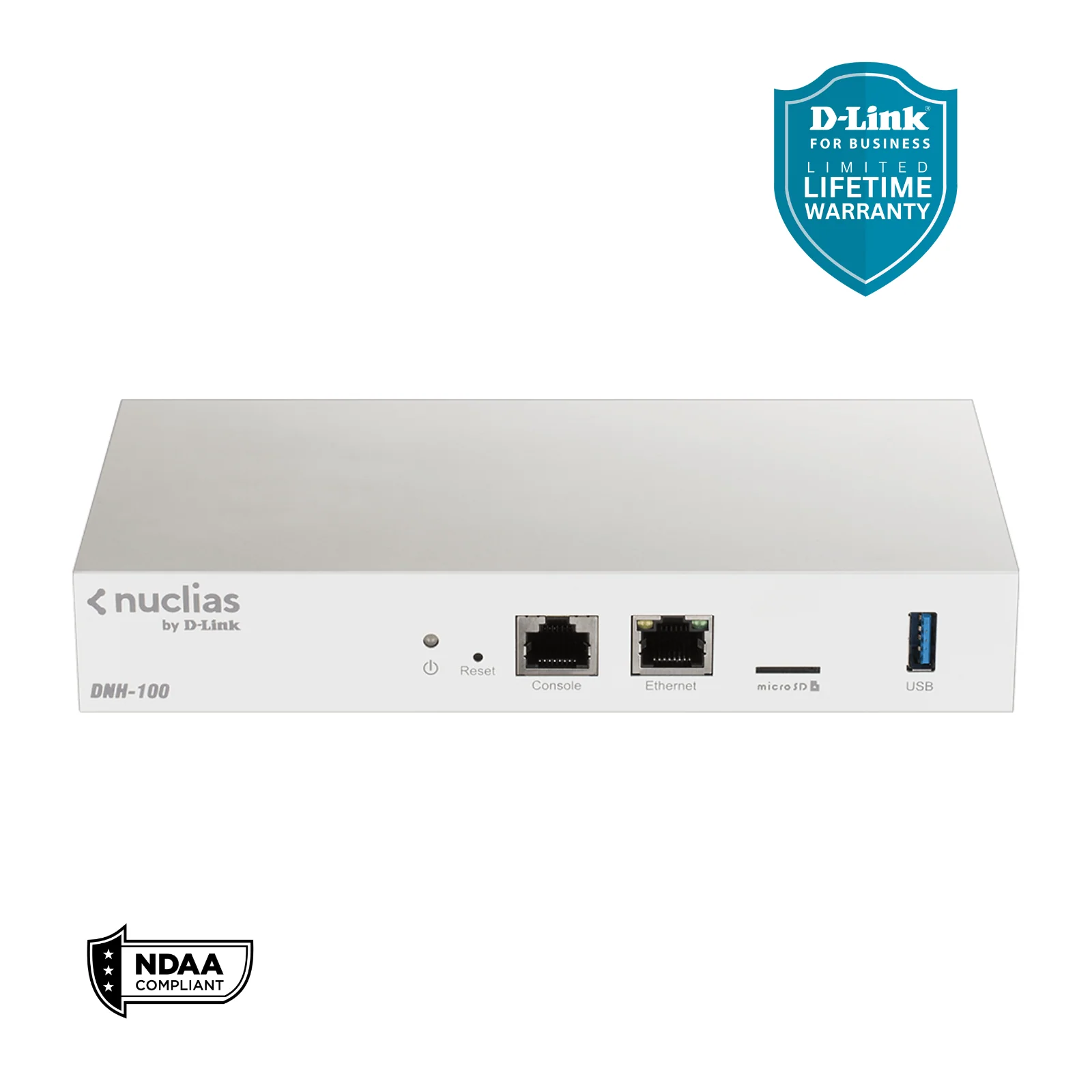

D-Link Nuclias Connect Hardware Controller | Scalable & Compact Network Solution |Management of up to 150 Devices | NDAA Compliant (DNH-100)
